Product Details:
|
| Product Name: | CVD Single Crystal Diamonds | Brand: | Yuda Crystal |
|---|---|---|---|
| Grade: | High | Crystal Orientation: | 100 110 111 |
| Type: | Optical Grade | Thickness: | 0.5mm |
| Size: | 15mm*15mm*0.5mm | Shape: | Square, Rectangular, Can Customize |
| Usage: | Making Tools, As Seed | Component: | Carbon |
| Hardness: | Moh's 10 Scale | Available Type: | CVD |
| Place Of Origin: | Zhengzhou, China | Payment Terms: | 100% Payment In Advance |
| Payment Mode: | T/T, Bank Transfer, PayPal, Western Union | Delivery Time: | 1-15 Working Days Depends On Quantity |
| Courier: | DHL, FedEx, UPS, TNT, EMS Etc | Packaging: | As Export Standard |
| Customization: | Welcome | Polish: | None |
| Symmetry: | None | Sample Order: | Welcome |
| Treatments Applied: | None | Enhancement: | None |
| High Light: | 15x15 CVD Single Crystal Diamonds,0.5mm CVD Single Crystal Diamonds,15mm*15mm diamond single crystal |
||

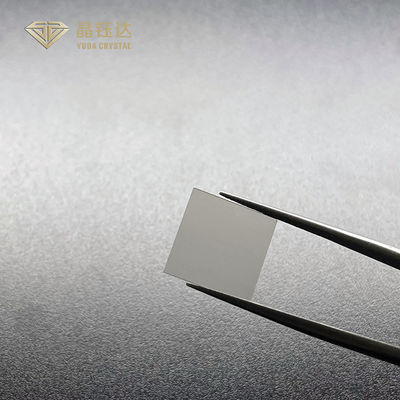

15mm*15mm Square Shape Optical Grade CVD Single Crystal Diamonds
CVD Single Crystal Diamonds Description
Due to the inherent transparency of CVD Single Crystal Diamonds in a wide wavelength range, optical characterization has long been a common method to characterize inclusions, impurities and color defects.
CVD Single Crystal Diamond has the widest optical transparent band of all known solids, ranging from 0.22um to far infrared. Only the intrinsic vibration absorption band with intensity between 2.5 and 7um interferes with the transmittance of CVD Single Crystal diamond in the infrared region. CVD Single Crystal Diamond is transparent in ultraviolet, visible and infrared spectra, which provides many opportunities for lattice defects to reveal the optical activity of electronic and vibrational transitions. Large band gap energy (5.49 EV) is a particularly favorable condition for luminescence, because the ground state and excited state are required to be in the band gap for radiative electron transition. The high mechanical hardness and thermal conductivity of CVD Single Crystal Diamond greatly support its optical applications, making CVD Single Crystal Diamond optics very stable and wear-resistant in many aspects. When discussing the optical properties of materials, we should carefully consider their optical centers, because their properties and abundance determine almost all the optical properties of materials. In addition, the optical center content is the main parameter to characterize the optical properties of materials. So far, more than 150 vibration centers and more than 500 electron optical centers have been detected in CVD Single Crystal Diamond, with the spectral range of 20-0.17um.
Parameters of CVD Single Crystal Diamonds
| CVD Single Crystal Diamonds Details | |
| Brand Name | Yuda Crystal |
| Name | CVD Single Crystal Diamonds |
| Diamond Color | White, Colorless or Light brown |
| Grade | Optical Grade Diamond |
| Surface | As Grown Or Laser Cut |
| Thickness | 0.5mm |
| Edge | Laser Cut or Polished |
| Size | 15*15mm, can customize |
| Shape | Can customize |
| Application | For Making Tools |
| Crystal Orientation | 100 110 111 |
| Delivery Time | 1 - 15 Working Days Base on Order Quantity |
| Payment Terms | 100% Payment In Advance |
| Payment Methods | T/T, PayPal, Western Union, Bank Transfer |
| Shipping way | DHL, FedEx, SF Express, UPS, EMS, TNT etc |
| M.O.Q | Negotiable |
| Diamond Type | Synthetic(lab created) |
| Location | Zhengzhou, China |
| Fire Dispersion | 0.044(Same as Natural Diamond) |
| Brilliance Refraction Index | 2.42(Same as Natural Diamond) |
| Relative Density | 3.52(Same as Natural Diamond) |
| Chemical Composition | Carbon(Same as Natural Diamond) |
| Moh's Hardness | 10(Same as Natural Diamond) |
CVD Single Crystal Diamonds Introduction
Natural diamonds are created by nature and are the result of high temperature and pressure formed over billions of years. The Lab Grown Diamonds are produced in the laboratory, usually in a few weeks. The chemical difference between the two is same.
So how do you distinguish between Lab Grown Diamonds and natural diamonds?
There is no obvious difference between the Lab Grown Diamonds and natural diamonds. Even professional gemologists need special equipment to identify them. By zooming in, professionals will be able to discern subtle contrasts in diamond inclusions grown and mined in the laboratory.
| The Difference Between Lab Diamond And Natural Diamond | ||
| Properties | Earth Mined | Lab Created |
| Guaranteed Conflict-Free | No | Yes |
| Hardness (MOHS) | 10 | 10 |
| SP3 Carbon Diamond Bonds (%) | 100% | 100% |
| Internal Crystal Structure | Face-Centered Cubic | Face-Centered Cubic |
| Hardness Comparable | 2.42 | 2.42 |
| Relative Diversity | 3.52 | 3.52 |
| Color Diffusion | 0.044 | 0.044 |
| Color | Various Grades | K to D grades |
| Price | $$$$$ | $$$ |
CVD Single Crystal Diamonds Details
